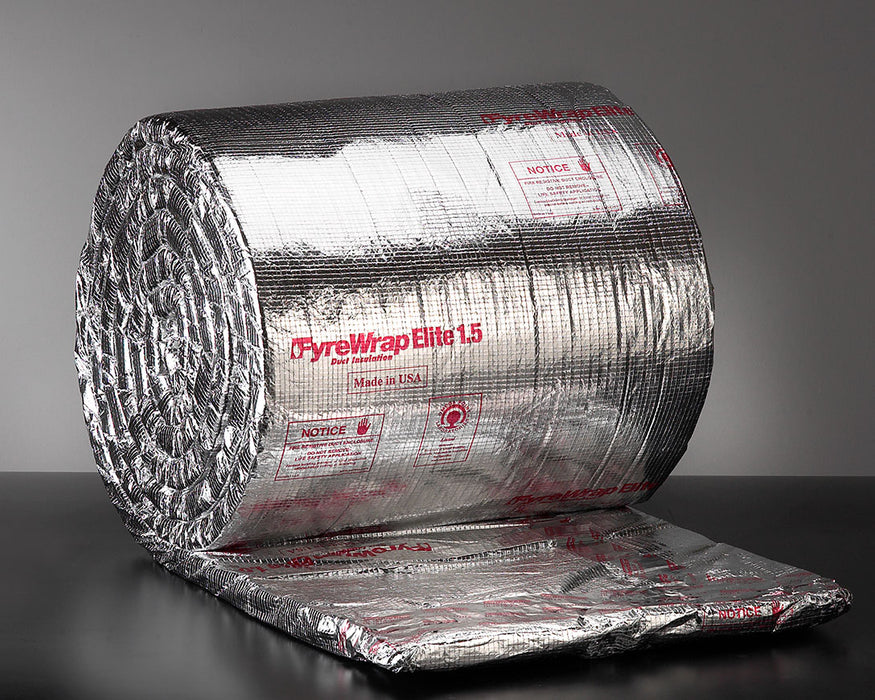

FyreWrap® Elite® 1.5 Duct Insulation – Grease Duct ASTM E2336 System

by Alkegen; Unifrax
$ 215.00 - $ 215.00
$ 215.00
$ 215.00 - $ 215.00
$ 215.00

Unifrax’s (Alkegen) FyreWrap® Elite® 1.5" Duct Insulation is a two-layer flexible enclosure for two-hour rated commercial kitchen grease ducts. FyreWrap Elite 1.5 Duct Insulation is tested per ASTM E2336 and is acceptable as an alternate to a traditional fire-rated shaft. Installed as a two-layer system, FyreWrap Elite 1.5 complies with the International Mechanical Code (IMC) and Uniform Mechanical Code (UMC).

FyreWrap Grease Duct Insulation offers the following product features:

• 2-hour fire-resistance rating
• Thickness: 1.5", Nominal Density 6pcf
• Complies with IMC and UMC
• Tested per ASTM E2336
• Two-layer system
• High-temperature, biosoluble insulation
• GREENGUARD listed for Microbial Resistance

Data Sheet and Installation instructions


Core Material: FyreWrap Elite 1.5 incorporates Insulfrax® Thermal Insulation as its core material. Insulfrax is a hightemperature insulation made from a calcia, magnesia, silica chemistry designed to enhance biosolubility. It provides excellent insulation in a noncombustible blanket product
form rated to 2300°F (1260°C).
Encapsulating Material: The core insulation blanket is completely encapsulated in an aluminum foil fiberglass-reinforced scrim covering. This scrim provides additional handling strength as well as protection from grease, moisture absorption and tearing.
